H400

Device description:

1. Machine characteristics: This equipment belongs to the four-axis grinding center, mainly suitable for the hard alloy, ceramic and CBN material groove and cutting tool grinding. Adopt advanced numerical control system, and can realize loading and unloading by six-axis robot, can realize all Angle rotation, reduce the blade turnover process, further improve the efficiency, shorten the grinding time. The grinding of various standard and non-standard tools can also be realized by changing the tooling.

2.Grinding part and online dressing, offline dressing device:

Yaskawa servo motor is used inside to control the outer round sand repair roller. Automatic sand repair reduces the manual secondary clamping and disassembling steps, saving a lot of labor costs and production time. The motorized spindle drives the rotation of the big grinding wheel, and the XZ axis drives its feed.

3.X and Z parts:

Advanced linear motor direct drive technology reduces the error and wear caused by mechanical transmission, with the full closed-loop feedback brought by the grating ruler, to ensure the response speed of each shaft and high-speed operation, to achieve high precision and high efficiency.

4. Robots send and receive materials:

The work piece is transported and clamped by a six-axis robot, with high production efficiency and high precision. The operation process:

The system controls the work of the six-axis robot, the laser sensor detects and identifies the work piece, the robot moves to the material tray to pick up the workpiece to be processed to the chip blowing box to initially blow off burrs and impurities, and finally sends it to the working head to pick up and process.

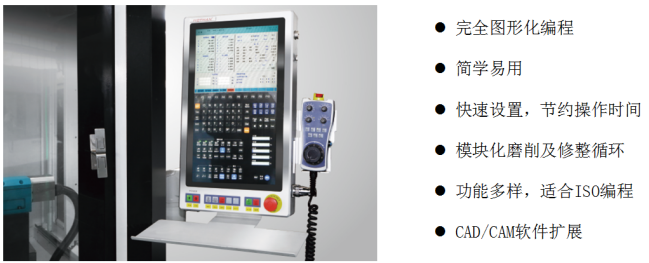

5. Easy to operate - easy to use CNC operating system:

By HOTMAN Hotman &LYNUC Rhennak development of the latest generation of user-friendly graphical programming software, has a simple and fast setting and intuitive user interface, do not need the operator input complex G code and subroutine, simple and easy to learn operation, so that programming and setting more quickly. The user experience and operation feel is excellent.

6. Full cover:

Very aesthetic color appearance design, the equipment adopts closed cover, greatly reduce the work piece grinding sound, and the production process of oil mist, waste gas and abrasive liquid, can be used in the oil mist purifier and filtration system, easy to use, conducive to environmental protection.

Cylinder automatic door, effectively resist oil spill, to prevent the material tray accumulation of impurities.

Automatic fire extinguishers for intelligent machine tools are optional and equipped by customers, greatly improving the safety factor of machine tools.

Technical specification:
